Docker & Environment Setup

This guide explains how to configure and deploy the Mdlwr application stack on your production server using Docker Compose.

---

1. Prerequisites

Before proceeding with the steps below, ensure that your target server has the following installed:

• Docker Engine (latest stable version)
• Docker Compose (v2 plugin)

Installation Guide (OS Specific)

If you do not have Docker installed, please follow the official installation guide from Docker's documentation based on your operating system:

• Install Docker Engine on Ubuntu
• Install Docker Engine on Debian
• Install Docker Engine on CentOS/RHEL/Rocky/Alma

---

2. Directory Structure Setup

On your target server (e.g., VPS or local client environment), create a base directory to store the configuration, environment files, and Docker volumes.

Run the following commands in your terminal:

sudo mkdir -p /opt/mdlwr/{volumes/postgres,volumes/redis,nginx,logs,tmp/incoming,apps/static/exports,apps/static/custom}
cd /opt/mdlwr

3. Environment Configuration (.env)

Create an .env file inside your base directory (/opt/mdlwr/.env) to store sensitive environment variables, database credentials, and base paths.

⚠️ Security Note: Make sure to change the default DEFAULT_ADMIN_PASS value from password123 to a strong and secure password before deploying to production.

Example .env configuration:

#Rebranding
#APP_NAME=MdlWr
#APP_LOGO=/static/custom/icon.png
#APP_FAVICON=/static/custom/icon.ico
#LOGIN_BG_IMAGE=/static/custom/login_background.png

# Volume for docker compose
#MDLWR_BASE=D:/mdlwr
MDLWR_BASE=/opt/mdlwr

#Important: For SITE_TYPE=remote configurations, you must uncomment the 'ACTIVATE ONLY FOR SITE REMOTE MDLWR' section in your docker-compose.yml file for the services to function correctly.
SITE_TYPE=central
SITE_ID=00000000-0000-0000-0000-000000000000
SYNC_INTERVAL=300

# --- App Mode ---
FLASK_APP=run.py
FLASK_ENV=development
FLASK_DEBUG=0
DEBUG=DEBUG

# --- Security ---
SECRET_KEY=b572f2578c47cb1565afb748179a5831f3242e8b15bea78ff17698xxxxxxxxxx
SHOW_PASSWORD=False

# --- PostgreSQL Settings FOR DOCKER ---
DEFAULT_ADMIN_USER=admin
DEFAULT_ADMIN_EMAIL=admin@example.com
DEFAULT_ADMIN_PASS=password123

DB_HOST=db
DB_PORT=5432
DB_USERNAME=myuser
DB_PASS=mypass
DB_NAME=mydb

DATABASE_URL=postgresql://myuser:mypass@db:5432/mydb
REDIS_URL=redis://redis:6379

# --- Redis ---
REDIS_HOST=redis
REDIS_PORT=6379

# Logging
LOG_LEVEL=INFO
LOG_TO_REDIS=True
CONSOLE_DEBUG=False

#Integration flow
MAX_FLOW_DEPTH=10

4. Nginx Configuration File

The Nginx container requires a robust configuration file mapped from the host to handle SSL certificates, WebSocket routing, security headers, and reverse proxying to backend services.

Create or update the nginx.conf file inside /opt/mdlwr/nginx/nginx.conf with the following production-ready configuration:

events {
    worker_connections 1024;
}

http {
    # --- Konfigurasi Global & Headers ---
    include          /etc/nginx/mime.types;
    default_type     application/octet-stream;
    server_tokens    off;

    add_header X-Frame-Options "SAMEORIGIN" always;
    add_header X-Content-Type-Options "nosniff" always;
    add_header X-XSS-Protection "1; mode=block" always;
    add_header Referrer-Policy "no-referrer-when-downgrade" always;
    add_header Strict-Transport-Security "max-age=31536000; includeSubDomains" always;
    add_header Permissions-Policy "camera=(), microphone=(), geolocation=(), payment=()" always;
    add_header Content-Security-Policy "default-src 'self' 'unsafe-inline' 'unsafe-eval'; img-src 'self' data:; worker-src 'self' blob:; frame-ancestors 'self';" always;


    resolver 127.0.0.11 valid=10s;
    access_log /app/logs/nginx-access.log;
    error_log  /app/logs/nginx-error.log warn;

    # --- Maps & Rate Limiting ---
    map $http_upgrade $connection_upgrade {
        default upgrade;
        ''      close;
    }

    map $uri $limit_key {
        ~^/static/   "";
        default      $remote_addr;
    }

    limit_req_zone $remote_addr zone=api_limit:10m rate=20r/s;
    limit_req_status 429;

    # --- SERVER 1: Redirect HTTP ke HTTPS ---
    server {
        listen 80;
        server_name mdlwr.web.id;
        return 301 https://$host$request_uri;
    }

    # --- SERVER 2: HTTPS (Port 443) ---
    server {
        listen 443 ssl;
        server_name mdlwr.web.id;

        ssl_certificate /etc/letsencrypt/live/mdlwr.web.id/fullchain.pem;
        ssl_certificate_key /etc/letsencrypt/live/mdlwr.web.id/privkey.pem;
        ssl_protocols TLSv1.2 TLSv1.3;
        ssl_ciphers HIGH:!aNULL:!MD5;

        client_max_body_size 100M;

        location @handle_unauthorized {
            return 302 /login;
        }

        # Global Proxy Headers
        proxy_set_header Host $host;
        proxy_set_header X-Real-IP $remote_addr;
        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
        proxy_set_header X-Forwarded-Proto $scheme;

        # --- SERVICES ---

        # --- DOCKER LOG STREAM (WEBSOCKET) ---
        location ~ ^/system/logs/stream/(.*) {
            set $target_terminal terminal;
            proxy_pass http://$target_terminal:5002/logs/stream/$1;

            proxy_http_version 1.1;
            proxy_set_header Upgrade $http_upgrade;
            proxy_set_header Connection 'upgrade';

            proxy_read_timeout 86400s;
            proxy_send_timeout 86400s;

            proxy_set_header X-Forwarded-Proto $scheme;
            proxy_set_header Host $host;
        }

       # --- DOCKER TERMINAL EXEC (WEBSOCKET) ---
        location ~ ^/system/logs/exec/(.*) {
            set $target_terminal terminal;
            proxy_pass http://$target_terminal:5001/logs/exec/$1;

            proxy_http_version 1.1;
            proxy_set_header Upgrade $http_upgrade;
            proxy_set_header Connection $connection_upgrade;

            proxy_read_timeout 86400s;
            proxy_send_timeout 86400s;

            proxy_set_header X-Forwarded-Proto $scheme;
            proxy_set_header Host $host;
            proxy_set_header X-Real-IP $remote_addr;
            proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
        }

        location = /internal-auth-check {
            internal;
            proxy_pass http://app:5000/internal/auth;
            proxy_pass_request_body off;
            proxy_set_header Content-Length "";
            proxy_set_header Cookie $http_cookie;
            proxy_set_header Host $host;
            proxy_intercept_errors on;
        }

        location ^~ /static/exports/ {
            auth_request /internal-auth-check;
            error_page 401 403 = @handle_unauthorized;

            proxy_pass http://app:5000;
            proxy_set_header Host $host;
            proxy_set_header X-Real-IP $remote_addr;
            proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
            proxy_set_header X-Forwarded-Proto $scheme;

            expires 0;
            add_header Cache-Control "private, no-cache, no-store, must-revalidate";
        }

        location ^~ /static/ {
            proxy_pass http://app:5000;
            proxy_set_header Host $host;
            proxy_set_header X-Real-IP $remote_addr;
            proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
            proxy_set_header X-Forwarded-Proto $scheme;

            expires 7d;
            add_header Cache-Control "public, no-transform";
        }

        location / {
            proxy_pass http://app:5000;
            proxy_set_header Host $host;
            proxy_set_header X-Real-IP $remote_addr;
            proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
            proxy_set_header X-Forwarded-Proto $scheme;
        }
    }
}

5. Docker Compose File (docker-compose.yml)

Create a docker-compose.yml file in the /opt/mdlwr/ root directory to define all application stack services including Database, Redis, Web Application, Celery Workers, File Manager, and Nginx reverse proxy.

Example docker-compose.yml file:

x-logging: &default-logging
  logging:
    driver: "json-file"
    options:
      max-size: "10m"
      max-file: "3"

services:
  app:
    <<: *default-logging
    image: ghcr.io/ikhsanrasyidi/mdlwr:latest
    user: root
    command: gunicorn run:app -w 1 --threads 2 -b 0.0.0.0:5000 --timeout 120 --graceful-timeout 5
    stop_grace_period: 5s
    env_file:
      - .env
    environment:
      TZ: Asia/Jakarta
    depends_on:
      db:
        condition: service_healthy
      redis:
        condition: service_healthy
    volumes:
      - ${MDLWR_BASE}/logs:/app/logs
      - ${MDLWR_BASE}/tmp/incoming:/app/tmp/incoming
      - ${MDLWR_BASE}/apps/static:/app/apps/static
      - ${MDLWR_BASE}/apps/static/custom:/app/apps/static/custom
      - /var/run/docker.sock:/var/run/docker.sock
    deploy:
      replicas: 1
    restart: always
    mem_limit: 600m
    cpus: "0.7"
    healthcheck:
      test: ["CMD", "curl", "-f", "http://localhost:5000/"]
      interval: 3s
      timeout: 2s
      retries: 5
      start_period: 3s

  terminal:
    <<: *default-logging
    container_name: terminal
    image: ghcr.io/ikhsanrasyidi/mdlwr-terminal:latest
    stop_grace_period: 3s
    env_file:
      - .env
    environment:
      TZ: Asia/Jakarta
    ports:
      - "5001:5001"
      - "5002:5002"
    volumes:
      - ${MDLWR_BASE}/logs:/app/logs
      - ${MDLWR_BASE}/tmp/incoming:/app/tmp/incoming
      - ${MDLWR_BASE}/apps/static:/app/static
      - /var/run/docker.sock:/var/run/docker.sock
    depends_on:
      app:
        condition: service_healthy
    restart: always

  nginx:
    <<: *default-logging
    container_name: nginx
    image: nginx:alpine
    command: ["nginx", "-g", "daemon off;", "-c", "/app/nginx/nginx.conf"]
    stop_grace_period: 2s
    ports:
      - "80:80"
      - "443:443"
    volumes:
      - ${MDLWR_BASE}/nginx/nginx.conf:/app/nginx/nginx.conf:ro
      - /etc/letsencrypt/live:/etc/letsencrypt/live:ro
      - /etc/letsencrypt/archive:/etc/letsencrypt/archive:ro
      - ${MDLWR_BASE}/apps/static:/app/apps/static:ro
      - ${MDLWR_BASE}/logs:/app/logs
    depends_on:
      app:
        condition: service_healthy
    restart: always
    mem_limit: 100m
    cpus: "0.2"

  job:
    <<: *default-logging
    image: ghcr.io/ikhsanrasyidi/mdlwr:latest
    command: celery -A apps.workers.job_worker worker --loglevel=info -Q job_queue --concurrency=1
    stop_grace_period: 3s
    env_file:
      - .env
    environment:
      TZ: Asia/Jakarta
      CELERY_BROKER_URL: redis://redis:6379/0
      CELERY_RESULT_BACKEND: redis://redis:6379/1
      C_FORCE_ROOT: "true"
    depends_on:
      app:
        condition: service_healthy
      db:
        condition: service_healthy
      redis:
        condition: service_healthy
    volumes:
      - ${MDLWR_BASE}/logs:/app/logs
      - ${MDLWR_BASE}/tmp/incoming:/app/tmp/incoming
    restart: always
    mem_limit: 300m
    cpus: "0.5"

  row:
    <<: *default-logging
    image: ghcr.io/ikhsanrasyidi/mdlwr:latest
    command: celery -A apps.workers.row_worker worker --loglevel=info -Q row_queue --concurrency=1
    stop_grace_period: 3s
    env_file:
      - .env
    environment:
      TZ: Asia/Jakarta
      CELERY_BROKER_URL: redis://redis:6379/0
      CELERY_RESULT_BACKEND: redis://redis:6379/1
      C_FORCE_ROOT: "true"
    depends_on:
      app:
        condition: service_healthy
      db:
        condition: service_healthy
      redis:
        condition: service_healthy
    volumes:
      - ${MDLWR_BASE}/logs:/app/logs
      - ${MDLWR_BASE}/tmp/incoming:/app/tmp/incoming
      - /var/run/docker.sock:/var/run/docker.sock
    restart: always
    mem_limit: 300m
    cpus: "0.5"

  email:
    <<: *default-logging
    image: ghcr.io/ikhsanrasyidi/mdlwr:latest
    command: celery -A apps.workers.email_worker worker -Q email_queue --concurrency=1
    stop_grace_period: 3s
    env_file:
      - .env
    environment:
      TZ: Asia/Jakarta
      CELERY_BROKER_URL: redis://redis:6379/0
      CELERY_RESULT_BACKEND: redis://redis:6379/1
      C_FORCE_ROOT: "true"
    depends_on:
      app:
        condition: service_healthy
      db:
        condition: service_healthy
      redis:
        condition: service_healthy
    volumes:
      - ${MDLWR_BASE}/logs:/app/logs
      - ${MDLWR_BASE}/tmp/incoming:/app/tmp/incoming
    restart: always

  scheduler:
    <<: *default-logging
    container_name: scheduler
    image: ghcr.io/ikhsanrasyidi/mdlwr:latest
    command: python -m apps.workers.run_scheduler
    stop_grace_period: 2s
    env_file:
      - .env
    environment:
      TZ: Asia/Jakarta
    depends_on:
      app:
        condition: service_healthy
      db:
        condition: service_healthy
      redis:
        condition: service_healthy
    volumes:
      - ${MDLWR_BASE}/logs:/app/logs
      - ${MDLWR_BASE}/tmp/incoming:/app/tmp/incoming
    restart: always
    mem_limit: 150m
    cpus: "0.3"

  db:
    <<: *default-logging
    container_name: db
    image: postgres:14
    restart: always
    stop_grace_period: 5s
    environment:
      POSTGRES_USER: myuser
      POSTGRES_PASSWORD: mypass
      POSTGRES_DB: mydb
    ports:
      - "5432:5432"
    volumes:
      - ${MDLWR_BASE}/volumes/postgres:/var/lib/postgresql/data
    command:
      - postgres
      - -c
      - shared_buffers=64MB
      - -c
      - work_mem=4MB
      - -c
      - maintenance_work_mem=32MB
      - -c
      - max_connections=50
    healthcheck:
      test: ["CMD-SHELL", "pg_isready -U myuser -d mydb"]
      interval: 3s
      timeout: 2s
      retries: 5
      start_period: 3s
    mem_limit: 400m
    cpus: "0.5"

  redis:
    <<: *default-logging
    container_name: redis
    image: redis:7-alpine
    restart: always
    stop_grace_period: 3s
    volumes:
      - ${MDLWR_BASE}/volumes/redis:/data
    command:
      - redis-server
      - --bind
      - 0.0.0.0
      - --protected-mode
      - "no"
      - --save
      - ""
      - --appendonly
      - "no"
    healthcheck:
      test: ["CMD", "redis-cli", "ping"]
      interval: 3s
      timeout: 2s
      retries: 5
      start_period: 2s
    mem_limit: 150m
    cpus: "0.2"

  stream:
    <<: *default-logging
    image: ghcr.io/ikhsanrasyidi/mdlwr:latest
    command: python -m apps.workers.run_stream_worker
    stop_grace_period: 2s
    env_file:
      - .env
    environment:
      TZ: Asia/Jakarta
    depends_on:
      app:
        condition: service_healthy
      db:
        condition: service_healthy
      redis:
        condition: service_healthy
    volumes:
      - ${MDLWR_BASE}/logs:/app/logs
      - ${MDLWR_BASE}/tmp/incoming:/app/tmp/incoming
    restart: always
    mem_limit: 200m
    cpus: "0.4"

  # == ACTIVATE ONLY FOR SITE REMOTE MDLWR ==
  sync:
    <<: *default-logging
    container_name: sync
    image: ghcr.io/ikhsanrasyidi/mdlwr:latest
    command: python -m apps.workers.run_sync_worker
    stop_grace_period: 3s
    env_file:
      - .env
    environment:
      TZ: Asia/Jakarta
      C_FORCE_ROOT: "true"
    depends_on:
      app:
        condition: service_healthy
      db:
        condition: service_healthy
    volumes:
      - ${MDLWR_BASE}/logs:/app/logs
      - ${MDLWR_BASE}/tmp/incoming:/app/tmp/incoming
      - ${MDLWR_BASE}/apps/static:/app/static
      - ${MDLWR_BASE}/migrations:/app/migrations
    restart: always
    mem_limit: 400m
    cpus: "0.5"

6. Deploying the Stack

Once your docker-compose.yml, .env, and folder structures are in place, run the following command to download images, initialize the containers, and start all background services:

docker compose up -d --build

Automatic Initialization Notice

During the first startup, the Flask application container (app) will automatically:

1. Initialize the database tables (db.create_all()).

2. Run setup_default_admin() to securely seed the initial admin account using the credentials defined in your .env file (DEFAULT_ADMIN_USER, DEFAULT_ADMIN_EMAIL, DEFAULT_ADMIN_PASS).

3. Set up PostgreSQL audit trigger functions, system identities, and synchronization registries.

Verifying the Installation

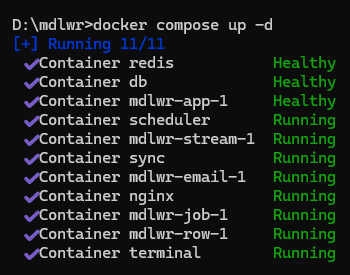

Once you run the docker-compose deployment command, verify that all core services and background workers start successfully. A healthy deployment will show 11/11 containers running as seen below:

Expected Running Services:

• Infrastructure: redis, db (PostgreSQL), nginx
• Core Application: mdlwr-app-1, terminal
• Asynchronous Workers: scheduler, sync, mdlwr-job-1, mdlwr-row-1, mdlwr-email-1, mdlwr-stream-1

Verifying the Deployment

To ensure all containers are running smoothly without errors, check the logs or container status using:

docker compose ps
docker compose logs -f app

7. Operational Management Scripts (mdlwr.sh / mdlwr.bat)

To simplify daily application management and container orchestration, you can use management helper scripts. Place these scripts in the root deployment directory alongside your docker-compose.yml file.

Linux / Unix Environments (mdlwr.sh)

Create mdlwr.sh in /opt/mdlwr/mdlwr.sh to easily control container lifecycles and monitor deployment durations:

#!/usr/bin/env bash

# Default action to 'restart' if no argument is provided
ACTION="${1:-restart}"

echo "===================================="
echo "  MDLWR CLI: docker compose $ACTION"
echo "===================================="

if [ "$ACTION" = "start" ]; then
    shift 1
    time docker compose up -d "$@"
elif [ "$ACTION" = "stop" ]; then
    shift 1
    time docker compose down "$@"
elif [ "$ACTION" = "restart" ]; then
    time (docker compose down && docker compose up -d)
else
    time docker compose "$@"
fi

echo "===================================="

Make the script executable:

chmod +x /opt/mdlwr/mdlwr.sh

Usage Examples:

./mdlwr.sh          # Restarts the entire stack (default)
./mdlwr.sh start    # Starts containers in detached mode
./mdlwr.sh stop     # Stops and removes containers
./mdlwr.sh ps       # Passes custom commands directly to docker compose

Windows Environments (mdlwr.bat)

For Windows-based host environments, create mdlwr.bat inside your deployment root directory (e.g., D:\mdlwr\mdlwr.bat):

@echo off
setlocal enabledelayedexpansion

set "COMMAND=%~1"
if "%COMMAND%"=="" set "COMMAND=restart"

:: Command Aliases
if /i "%COMMAND%"=="start" set "COMMAND=up -d"
if /i "%COMMAND%"=="stop" set "COMMAND=down"

echo ====================================
echo    MDLWR CLI: docker compose %COMMAND%
echo ====================================

:: Capture Start Time
set "T_START=%time%"
call :GetSeconds "%T_START%" SEC_START

if /i "%COMMAND%"=="restart" (
    cmd /v:on /c "docker compose down"
    echo ------------------------------------
    cmd /v:on /c "docker compose up -d"
) else (
    cmd /v:on /c "docker compose %*"
)

:: Capture End Time
set "T_END=%time%"
call :GetSeconds "%T_END%" SEC_END

:: Calculate Execution Duration
set /a DURATION=%SEC_END% - %SEC_START%

:: Handle Midnight Crossover
if %DURATION% LSS 0 set /a DURATION+=86400

echo ------------------------------------
echo  Start           : %T_START%
echo  Finish          : %T_END%
echo  TOTAL Duration  : %DURATION% second(s)
echo ====================================
goto :eof

:: Helper Function: Convert %time% to Total Seconds
:GetSeconds
for /f "tokens=1-4 delims=:. " %%a in ("%~1") do (
    set /a "h=100%%a %% 100", "m=100%%b %% 100", "s=100%%c %% 100"
    set /a "%2=(h*3600) + (m*60) + s"
)
goto :eof

Usage Examples:

mdlwr.bat          :: Restarts the entire stack
mdlwr.bat start    :: Starts all containers
mdlwr.bat stop     :: Stops all containers
mdlwr.bat logs -f  :: Pass-through command to inspect logs
